Quick Start

Following the instructions below, you can create a simple, personalized view in just a few minutes that displays data cells from various sources. The view places this data on a graphic item, created using another tool.

Start Personal View Builder.
Enter "guest" for Username and "guest" for Password
Go to “Display/Properties”. Select your phone model or enter the screen data manually.

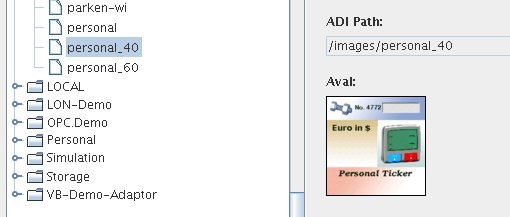

Insert an image object using the “Image” button. Go to “My Images” and select an image that begins with “Personal”. Enlarge the image to the full size of the view.
Insert Live Text objects using the “Live Text” button. Select the following ADI variables and drag the objects to the appropriate places in the view:

~/Examples/Simulation/Storage/Screw/4772

~/Examples/Finance/Euro in $
~/Examples/Simulation/grandma/systolic
~/Examples/Simulation/grandma/diastolic
~/Examples/Simulation/grandma/pulse

Insert a ticker object using the “Ticker” button. Select the ADI variable “~/MyData/Meeting Point”. Drag the object to the appropriate area in the view.
Choose "GoLive!->Run" (or F9) to start the preview mode. The view will be displayed, animated with the current data values from GDS.
Go to “View->Save As…” and enter a filename for the view.
To watch this view you will need the viewer.
